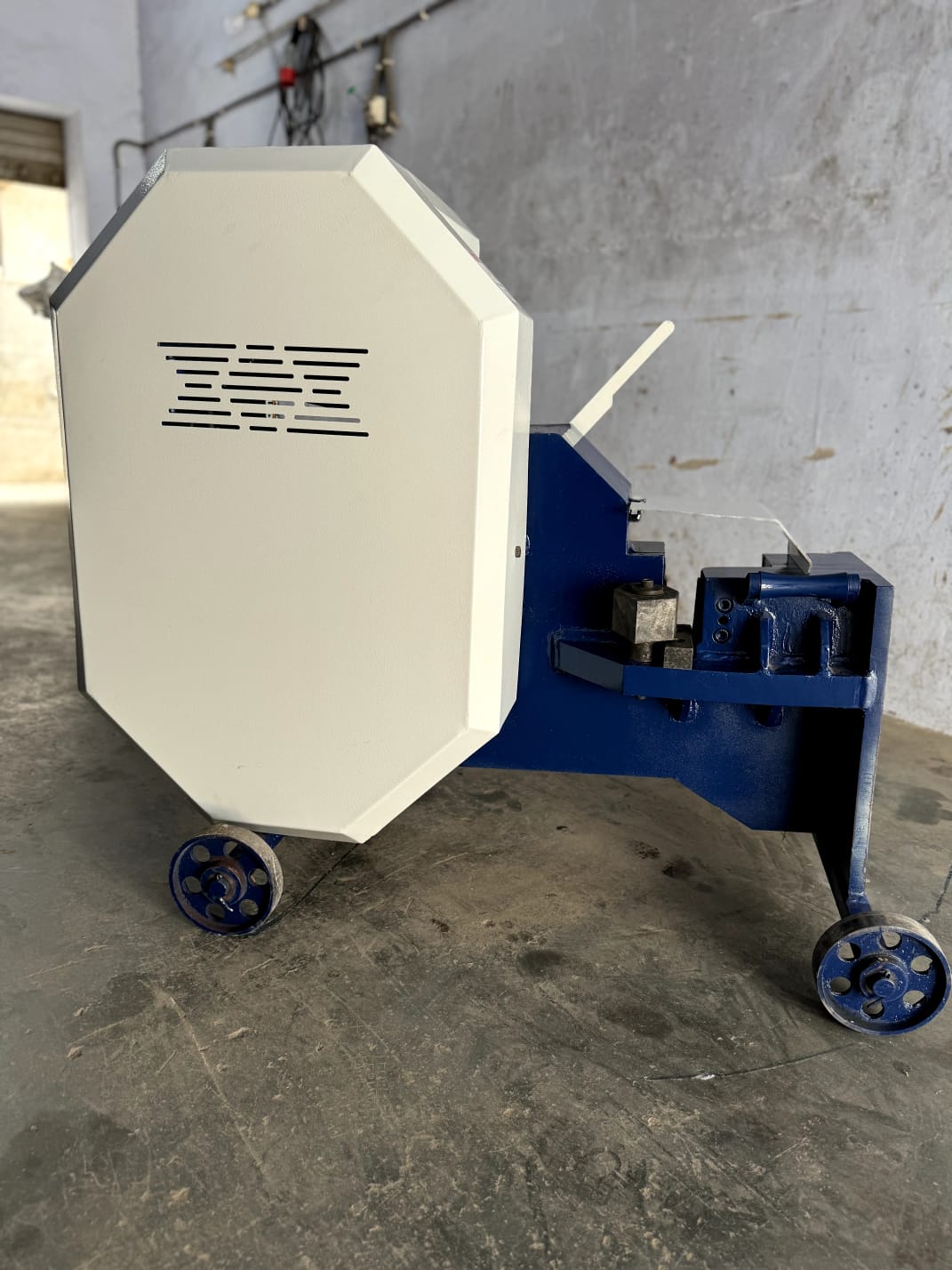

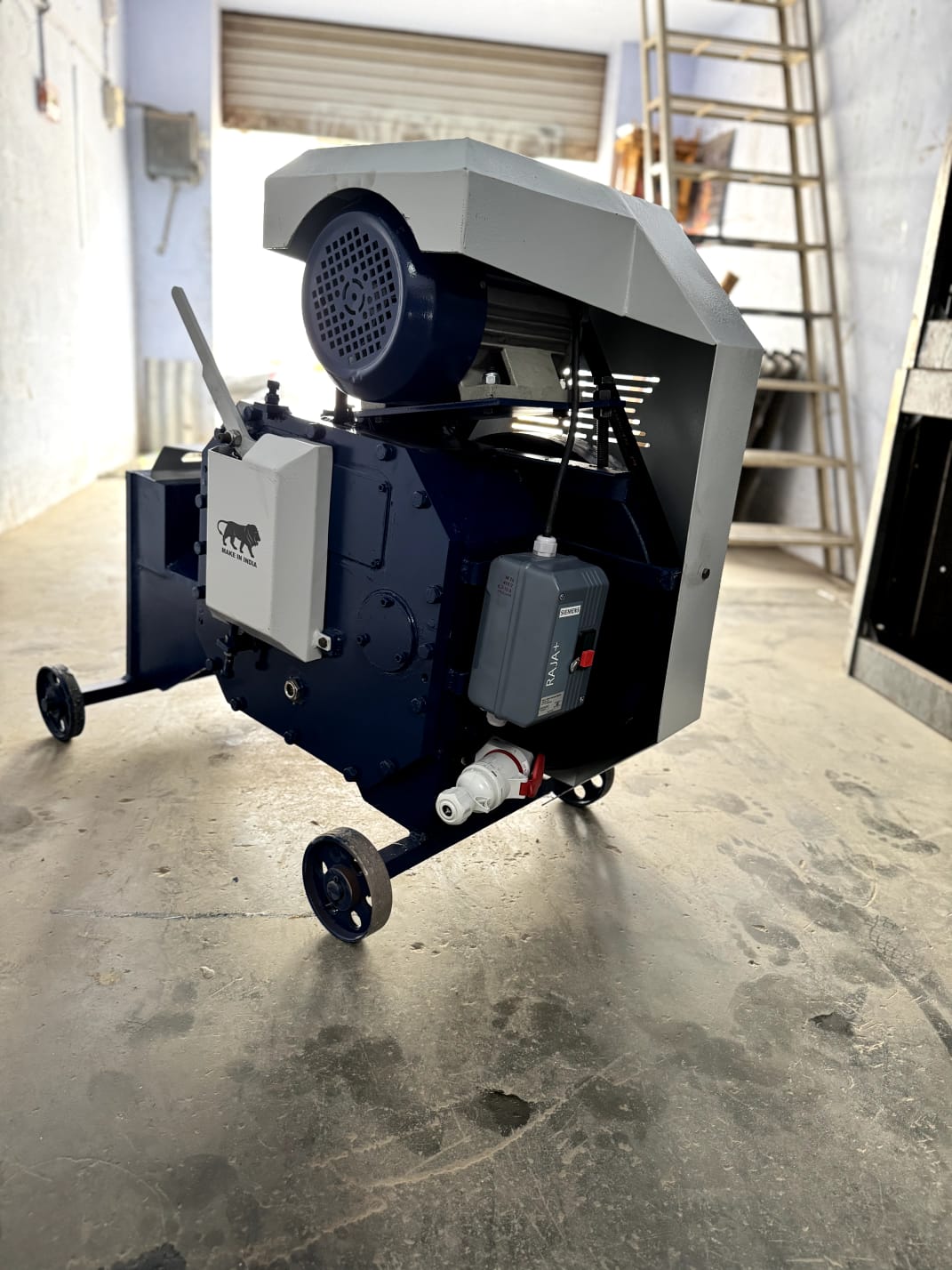

Imagerive Bar Cutting Machines are specially design as per the Indian working conditions with all required safety. Each part in this model in cutting machine is designed with advance software with a goal to make the machine rugged, stronger & maintenance free. The cutting blades are made from special hardened steel &designed to cut small and big diameter steel rods. We use double stage of helical gearbox design, which helps in reducing speed and improving the life of blades vastly. The gears and all moving parts are made with alloy steel with suitable heat treatment and flame harden in gears forwear resistance. Minimum vibration and less noise while cutting bars because of dynamically balanced flywheel, thereby ensuring long life of moving parts.
Key Features
Heavy Duty motor starter.
Under voltage – Over voltage Protection.
Single Phase Preventor.
Dynamically balanced flywheel for vibration free operation.
Specifications
Model
Dimensions (L X W X H)
Weight
Stroke/Min
Motor Power
ICM42
1075 X 900 X 525 mm
420 kg
85
3.7 kw (5 HP)
ICM52
1130 X 750 X 920 mm
565 kg
55
4 kw (5.5 HP)
ICM55
1210 X 735 X 1010 mm
820 kg
50
5.5 kw (7.5 HP)
Product Capacity
ICM42 PRO
Dia of Bars
32
25
20
16
12
10
8
TMT FE 500D 60kg/mm
1
1
2
3
3
4
6
ICM52 PRO
Dia of Bars
36
32
25
20
16
12
10
8
TMT FE 500D 60kg/mm
1
1
2
3
4
5
8
ICM55 PRO
Dia of Bars
40
36
32
25
20
16
12
10
8
TMT FE 500D 60kg/mm
1
1
2
2
4
5
6
8
