Concrete Mixer

Concrete Mixer

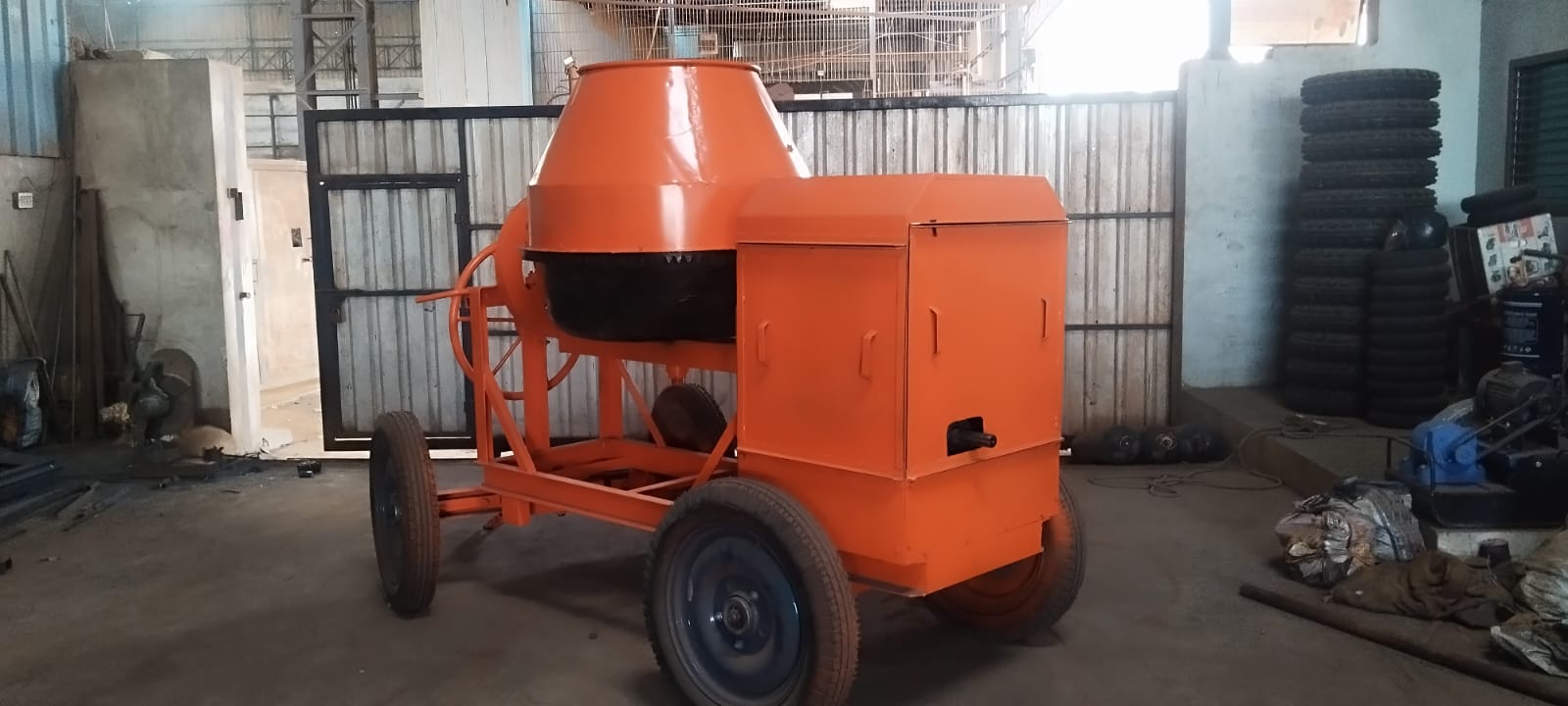

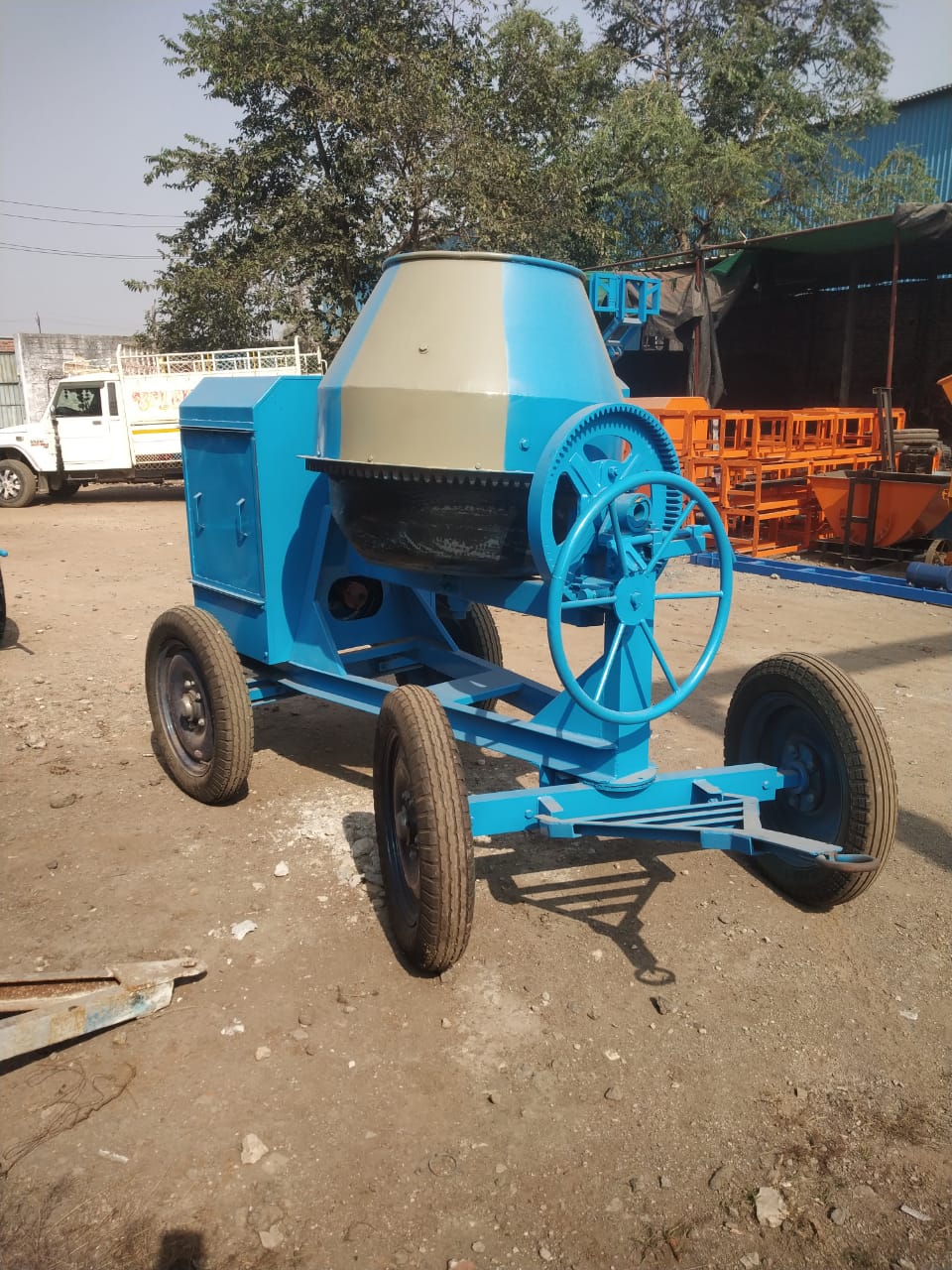

The B. M. Equipment's arrangement of Concrete Mixer Machine are the most excellent one bag concrete mixer machine and is utilized to blend concrete, sand and different aggregates to create concrete of the necessary evaluation.

Key Features

Heavy Duty Cast Iron Drum empowers simple shifting of drum in this way diminishing weariness for the laborer and expanding yield significantly.
Special stage gave on working side to advantageous and safe activity of the mixer machine.
Tire Axle with locking framework.
Brand New Pneumatic Tires Available.
Heavy Duty M.S. Channel Chassis.
Without Hopper and smaller, thus simple to move and utilize.

Technical Data

Parameter	Description
MODEL NO.	BM 100 – MIXHF
Capacity	Unmixed: 10 cft. Blended: 7 cft
Volume	450 Litres
Prime Mover	6.5 HP air cooled HSD diesel motor/3 HP 3 stage Electric Motor
Hopper	Without hopper, hand feed
Drum Speed	18 rpm
Wheels	Brand new 500 x 19 pneumatic tire with centre point and bearing framework, and squeezed steel plate edges – 4 No’s
Handy Yoke	100x100x5 mm C Section M.S. channel, Bearing System
Chassis	Heavy Duty M.S. 100 x 50 x 5 mm Channel suspension
Drive Chain	Rolon brand
Mixing Drum and Blades	Heavy Duty CI Lower drum 3.15 mm M.S. upper drum and uncompromising M.S. sharp edges for blending
Drum Type	Tilting
Motor Cabin	16 G (1.6 mm) Thick
Dimensions	L 2470 x W 1270 x H 1900 mm
Weight	900 kg
